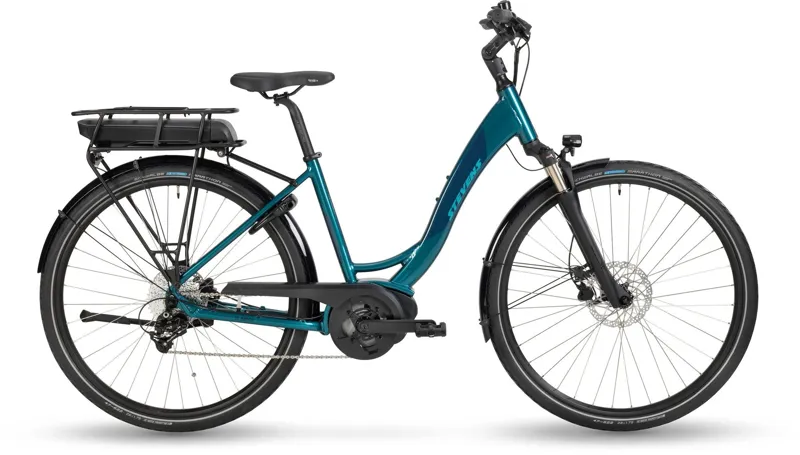

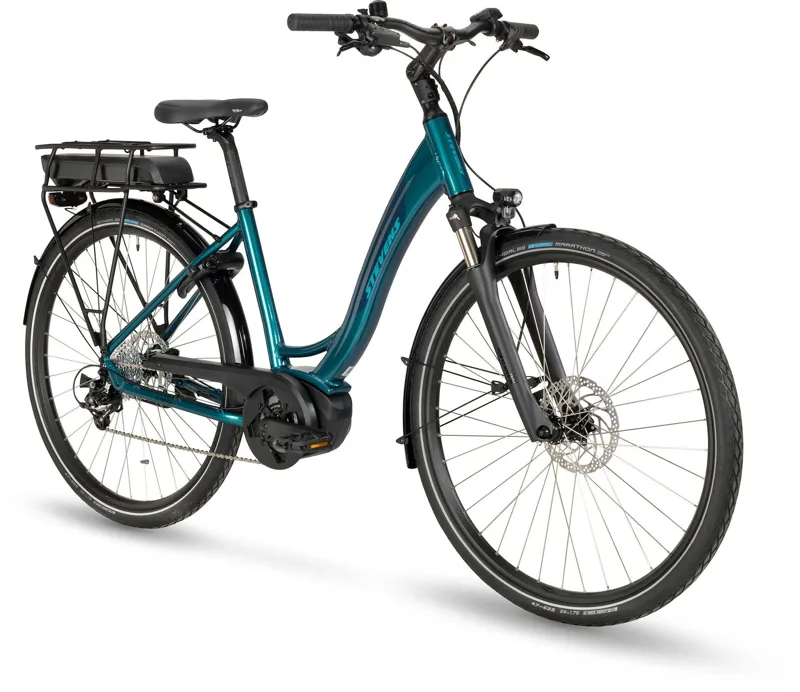

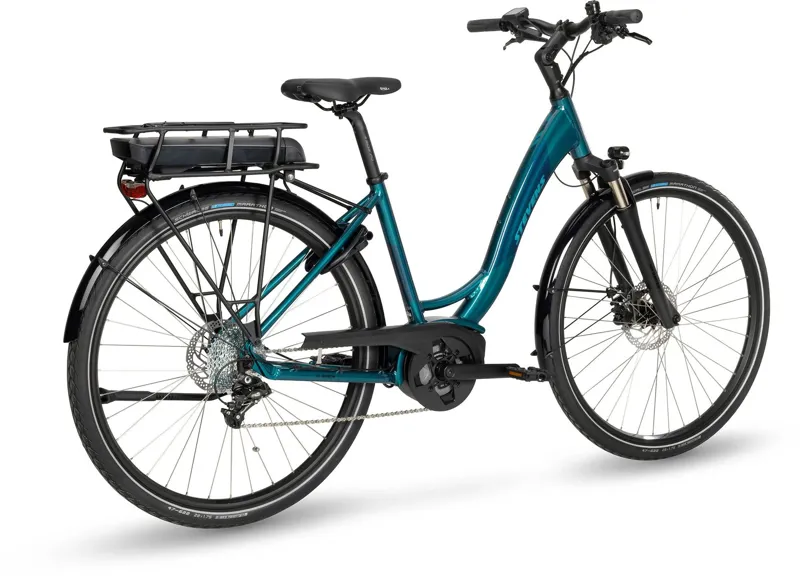

Stevens E-Molveno Forma Gen.1 Electric Bike in Blue

Brand:Stevens

Code:STVEMOLVBLU

Your access to the E-class.

A stiff frame with suspension fork and comfortable geometry. Reliable components from SunRace derailleurs to hydraulic Tektro disc brakes. Functional accessories for every-day use and touring on the weekend. The E-Molveno makes it easy to switch to an e-powered bike at an attractive entry-level price.

Features:

  • Silent Bosch G3 Active Line system with persistent 400 Wh battery
  • Load-capable designed frame tubes made of aluminium 6061
  • Reliable, precise Tektro disc brakes
  • Comfortable cockpit w/ adjustable stem
Technical Information
  • Frame
    Aluminium 6061, O.L.D. 135 mm, IS disc brake, Bosch BB, internal cable routing, fender and rack mounts
  • Fork
    SR Suntour NX1-Coil LO, 63 mm travel, coil spring, lockout, 1 1/8" steerer, 100 mm O.L.D., postmount disc 6" brake, fender mounts
  • Headset
    STEVENS AH 1 1/8", ZS44/28.6 upper bearing cup, ZS44/30 lower bearing cup
  • Brakes
    Tektro HD-T280 hydraulic disc, 2 pistons
  • Brake discs
    Front: 180 mm, Rear: 160 mm, Center-Lock
  • Crankset
    Oxygen E-Scorpo, Bosch/ISIS BB, chainguard
  • Motor sprocket
    STEVENS, 42 T, 47.5 mm chainline
  • Derailleur rear
    Sunrace RDM93, 8/9-speed, 40 T capacity
  • Chain
    KMC X9 NPGY
  • Cassette
    SunRace CSM90, 9-speed, 11-36 T
  • Pedals
    City Reflex
  • Motor
    Bosch G3 Active Line, 250 W, 40 Nm torque, 25 km/h assist limit
  • Battery
    Bosch PowerPack 400, 400 Wh, 11.0 Ah, 36 V, Li-Ion
  • Charger
    Bosch 2A
  • Hubs
    Front: Formula CL-51 (QR5x100 mm), Rear: Formula CL-52 (QR5x135 mm)
  • Rims
    Oxygen RM-26 Disc, ETRTO 26 x 622
  • Tires
    Schwalbe Marathon, 47-622, Endurance compound, GreenGuard, reflective stripes
  • Handlebar
    Oxygen E-Scorpo, 680 mm width, 5° backsweep, 25 mm rise, 31.8 mm clamp
  • Stem
    Oxygen Versa II, adjustable 0° - 90°, 31.8 mm clamp
  • Saddle
    Selle Royal Nuvola Lady
  • Seatpost
    Oxygen E-Scorpo, 320 mm length, 30.9 mm diameter
  • Display
    Bosch Purion
  • Lighting
    AXA Compactline 35 headlight (35 lux), AXA Blueline stationary taillight
  • Carrier
    STEVENS rear rack, SNAP IT system
  • Kickstand
    Pletscher Comp, KSA 18 mount
  • Weight
    24.0 kg
  • Max. load
    140 kg
Sizing Information
Frame height (cm) 46 52 56
Seattube length (A1) 636 mm 645 mm 674 mm
Seattube length (A2) 460 mm 520 mm 560 mm
Seattube length (A3) 163 mm 163 mm 163 mm
Top tube horizontal (C) 565 mm 578 mm 587 mm
Headtube angle (°) (D) 67.5 67.5 67.5
Seattube angle (°) (E) 73 73 73
Wheelbase (F) 1143 mm 1157 mm 1169 mm
Chainstay length (G) 498 mm 498 mm 498 mm
Headtube length (H) 150 mm 160 mm 190 mm
Bottom bracket drop (I) 65 mm 65 mm 65 mm
Bottom bracket height (K) 291 mm 291 mm 291 mm
Fork rake (L) 42 mm 42 mm 42 mm
Wheel radius front (N1) 361.5 mm 361.5 mm 361.5 mm
Wheel radius rear (N2) 361.5 mm 361.5 mm 361.5 mm
Standover height (O) 473 mm 473 mm 473 mm
Top tube height (O1) 117 mm 117 mm 117 mm
Fork build height (P) 455 mm 455 mm 455 mm
Front wheel - bottom bracket (Q) 653 mm 667 mm 679 mm
Reach (R) 379 mm 389 mm 390 mm
Stack (S) 608 mm 617 mm 645 mm
Stack/Reach ratio 1.6 1.59 1.65
Seatpost length 320 mm 320 mm 320 mm
Seatpost diameter 30.9 mm 30.9 mm 30.9 mm
Stem length 90 mm 90 mm 110 mm
Stem angle (°) 0 0 0
Handlebar diameter 31.8 mm 31.8 mm 31.8 mm
Handlebar width 680 mm 680 mm 680 mm
Cranklength 170 mm 170 mm 175 mm

All variable geometry values refer to the regular riding position (with rider on board and slightly compressed suspension fork). Standover height measured 100 mm ahead of bottom bracket.
